R21 Disc Brake Bike Frameset
Frame
IDR
19.750.000
Frame size
Warna
Panjang stem handlebar
Lebar handlebar
Share :
Carbon Weave: UD
Groupset Compatible: Machine and Electronic compatible
BB: BB386
Rear Dropout: 12*142 Thru Axle
Rear derailleur hanger: Replacable
Headtube: 1-1/2”
Fork: Aero Disc Brake Fork,Flat Mount,12*100 Thru Axle
Fork Offset: 43˚
Brake: Flat Mount Disc Brake
Max Tire Width: 28mm
Cable: Internal cable
Frame Weight: 1050g(54cm)
Fork Weight: 450g
Seatpost Weight: 210g
Accessories: Handelbar Spacers 5mm: 1PCS, 10mm: 1PCS
Front Axle 1PC, Rear Axle 1PC
Limited Rider Weight: 110KG
Warranty: 3 Years

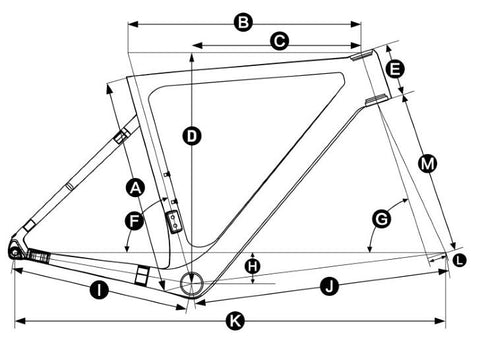

Geometry:
| Size Dimension | A | B | C | D | E | F | G | H | I | J | K | L | M |
| 49CM | 470 | 510 | 374.1 | 507.1 | 105 | 75° | 71° | 71 | 408 | 574.3 | 971.7 | 43 | 370 |
| 52CM | 490 | 530 | 384.5 | 524.7 | 120 | 74.5° | 72° | 71 | 408 | 574.3 | 979 | 43 | 370 |
| 54CM | 510 | 549.7 | 393.7 | 544.2 | 140 | 74° | 72.5° | 71 | 408 | 574.3 | 990 | 43 | 370 |
| 56CM | 530 | 564.7 | 397.3 | 566.2 | 160 | 73.5° | 73° | 71 | 408 | 574.3 | 997.3 | 43 | 370 |
| 58CM | 550 | 584.7 | 403.1 | 594.9 | 190 | 73° | 73° | 71 | 408 | 574.3 | 1010.2 | 43 | 370 |
| 61CM | 580 | 600 | 413.2 | 611.1 | 205 | 73° | 73.5° | 71 | 408 | 574.3 | 1009.8 | 43 | 370 |
