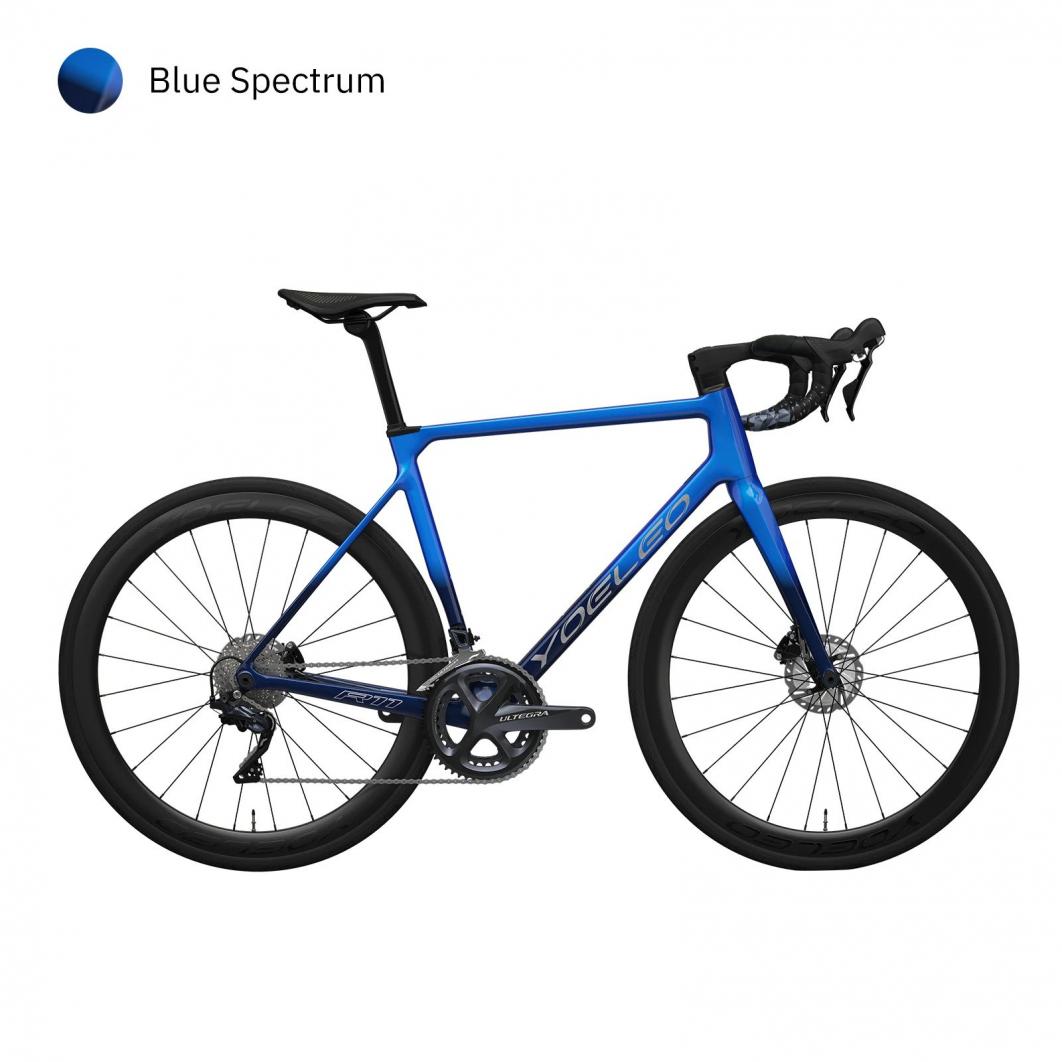

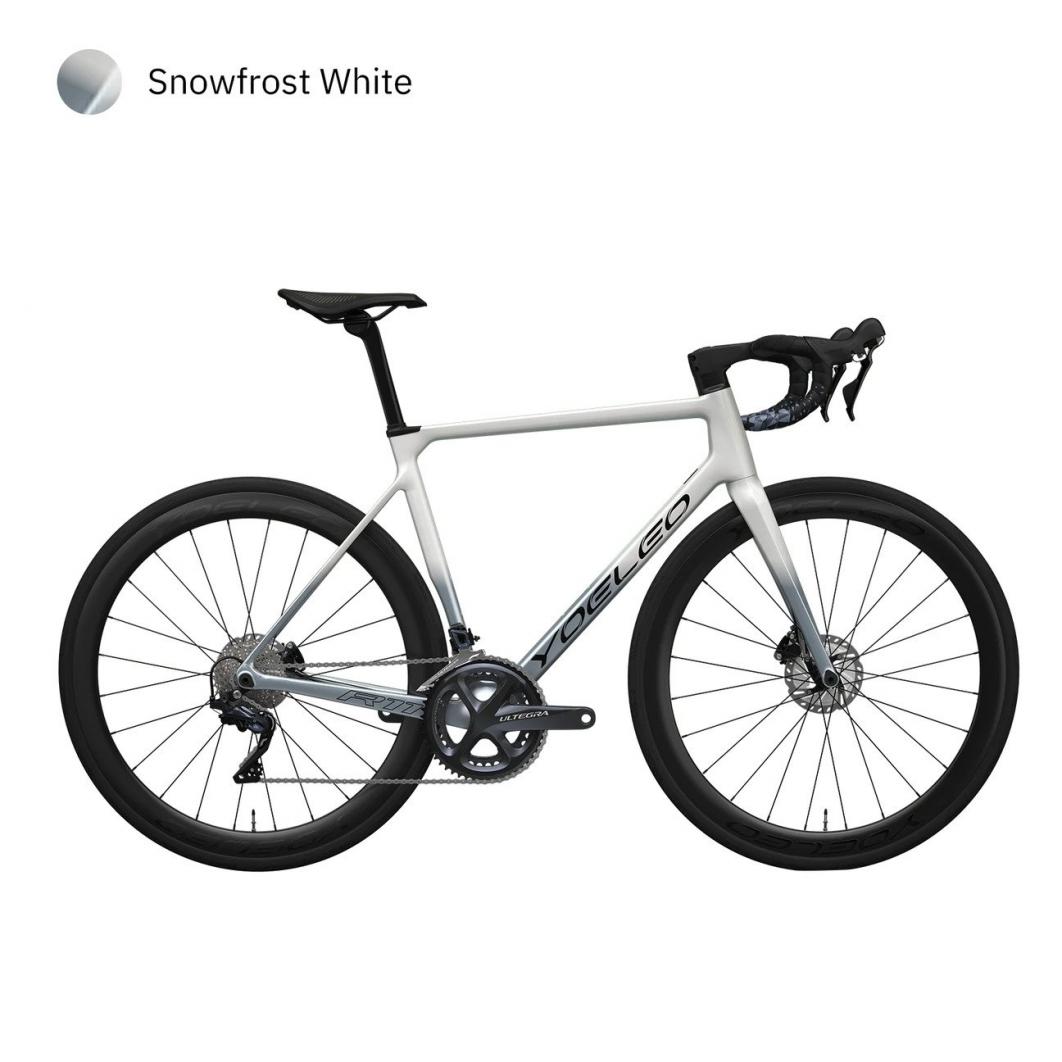

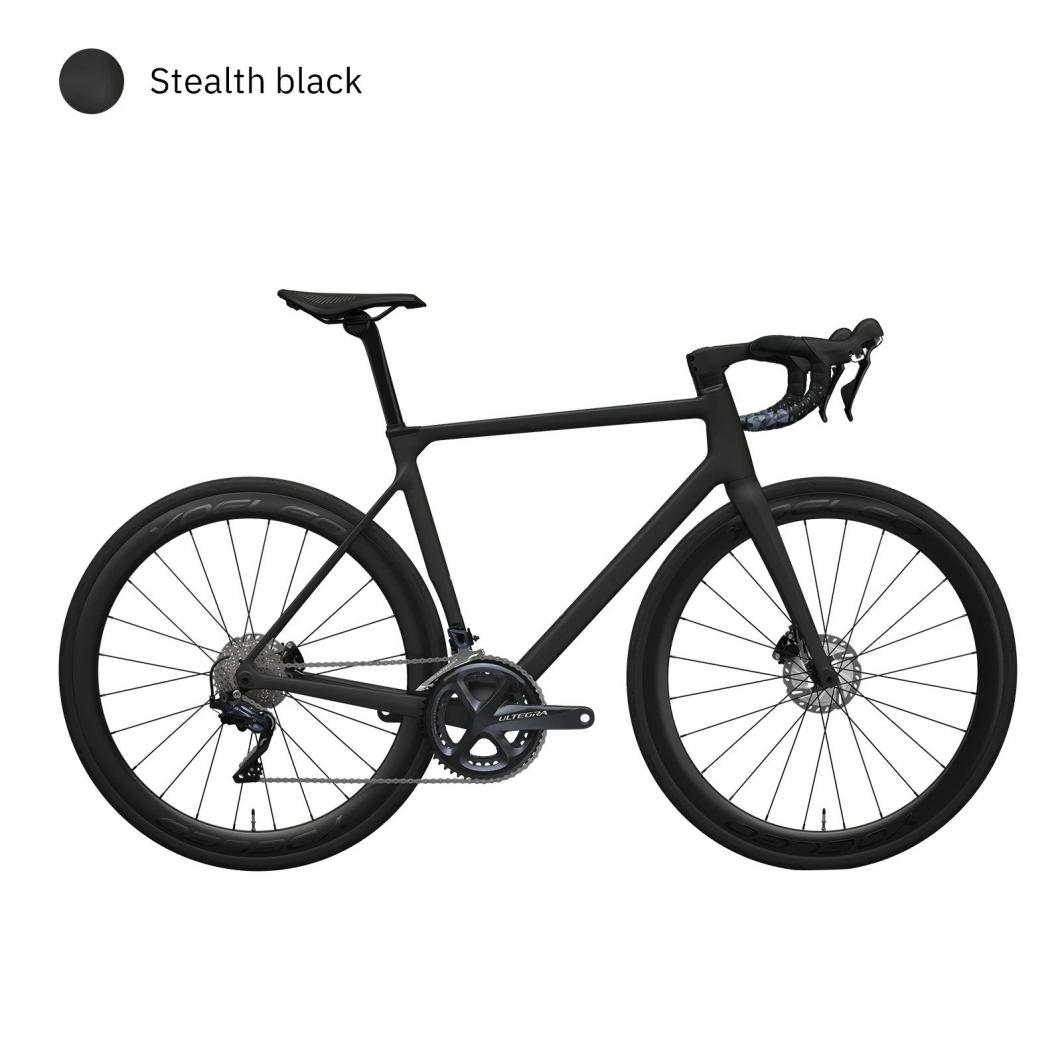

R11 PRO Disc Brake Carbon Road Bike
Complete Bike
IDR
60.750.000
Ukuran frame
Warna
Lebar handlebar
Panjang stem handlebar
Wheelset
Share :
| Ukuran Frame: | 48cm,52cm,54cm,56cm,59cm |
| Warna: | Chameleon/Lightning Yellow/Navy Blue/Night Black/Pearly White/Pinky Dust/Red Candy/Stealth Black |
| Frame | YOELEO R11 Super Light Frame Material: Carbon Fiber T1000 Dimensi As Roda: 12 x 142 mm Brake Mount: Flat Mount Berat: 850g(54cm) Berat Seatpost: 204g |
| Fork | YOELEO R11 Super Light Fork Material: Carbon Steerer: Taper 1-1/8” to 1-1/2” Dimensi As Roda: 12 x 100 mm Brake Mount: Flat Mount Berat: 390g |
| Handlebar | YOELEO H9 Handlebar Lebar Handlebar: 380mm/400mm/420mm/440mm Panjang Stem Handlebar: 90mm/100mm/110mm/120mm Berat:325+/-15gram |
| Groupset | Shifter Shimano Ultegra R8020, 11-Speed Front Derailleur Shimano Ultegra R8020, braze-on Rear Derailleur Shimano Ultegra R8020 Crank Shimano Ultegra R8000 Cassette Shimano Ultegra R8000, 11 speed Chain Shimano Ultegra HG701, 11-speed Brake Shimano Ultegra hydraulic disc, flat mount Rotor Front 160mm/Rear 140mm |
| Wheelset | YOELEO SAT C50|50 DB STD Thru Axle: 12*100/12*142 Ban Continental GrandSport Race 700*28C |
Geometry:
| Size Dimension | L Reach |
M Stack |
A Top Tube Length |
B Head Tube Length |
C Seat Tube Angle |
D Head Tube Angle |
E BB Drop |
F Chain Stay |
G Wheel Base |
H BB to Front Wheel |
I Fork Length |
J Fork Rake |
K Seat Tube Length |
| 49CM | 373 | 514 | 520 | 110 | 74° | 72.5° | 69 | 410 | 965 | 565 | 370 | 45 | 455 |
| 52CM | 384 | 523.5 | 535 | 120 | 74° | 72.5° | 69 | 410 | 975 | 579.5 | 370 | 45 | 475 |
| 54cm | 385 | 541 | 545 | 136 | 73.5° | 73° | 69 | 410 | 975 | 580.2 | 370 | 45 | 495 |
| 56CM | 394.5 | 578 | 560 | 155 | 73.5° | 73° | 69 | 410 | 990 | 594.9 | 370 | 45 | 515 |
| 59CM | 398 | 579 | 575 | 175 | 73° | 73.5° | 69 | 410 | 995 | 600 | 370 | 45 | 535 |
