Including Parts: G21 Frame, Fork, Handlebar, Seatpost

Frame:

Size: 49cm, 52cm, 54cm, 56cm, 58cm, 60cm

Material: High Modulus Toray 800 Carbon Fiber

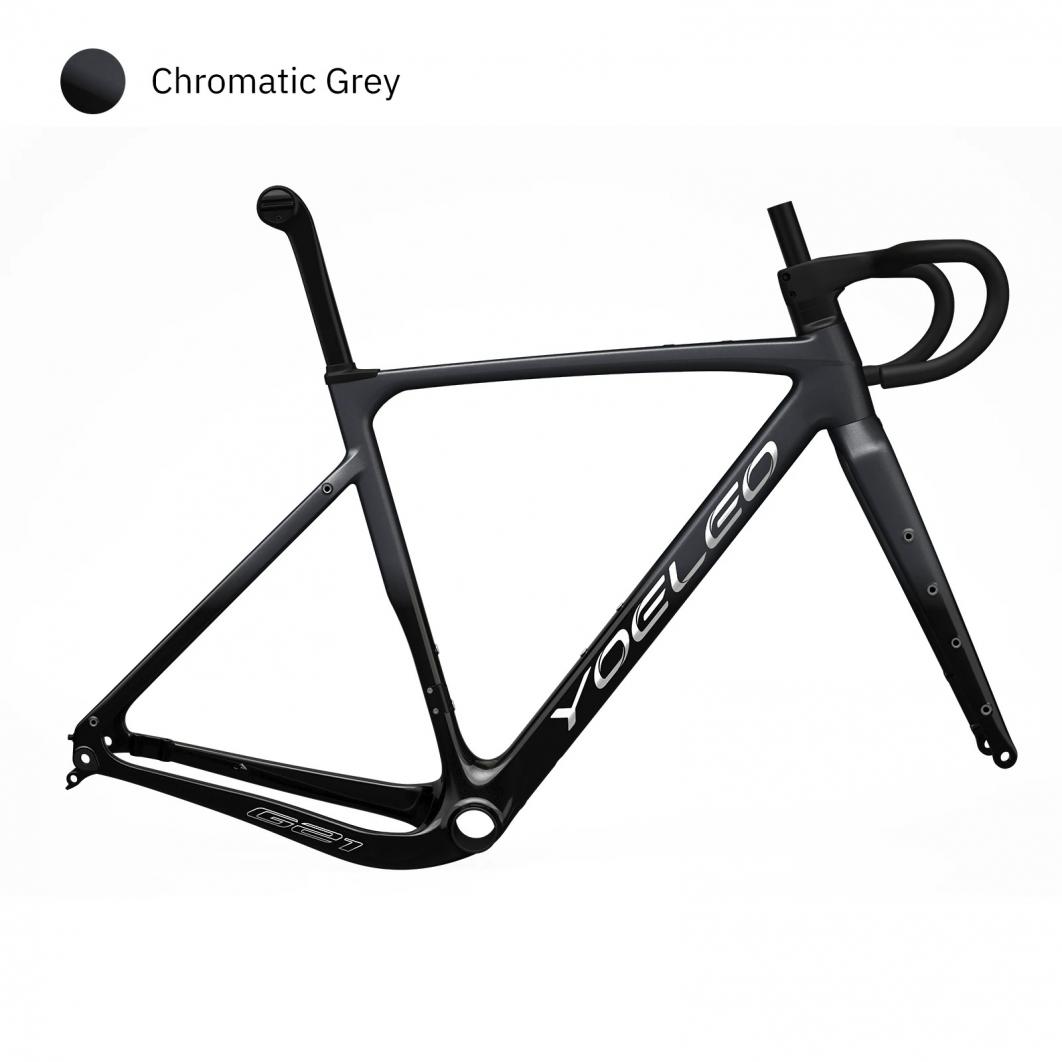

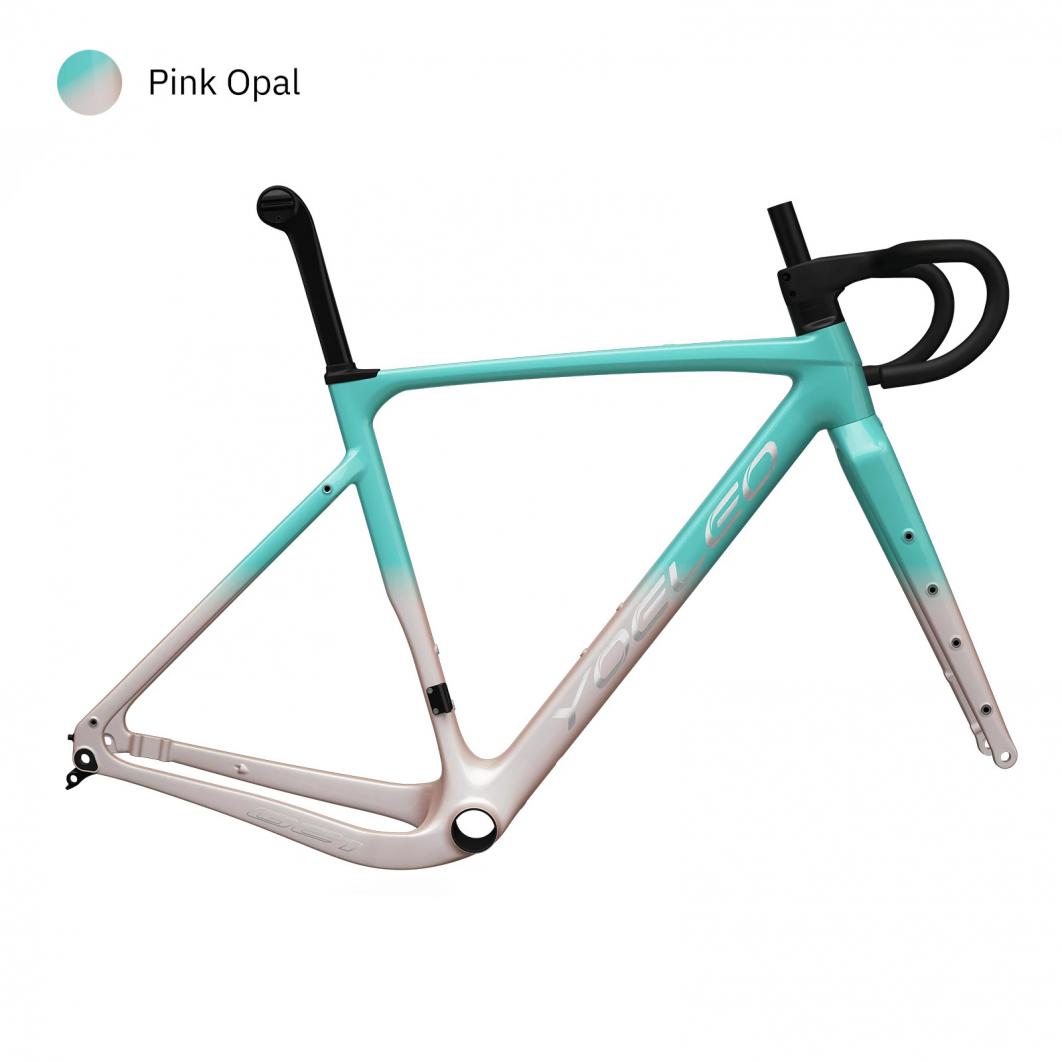

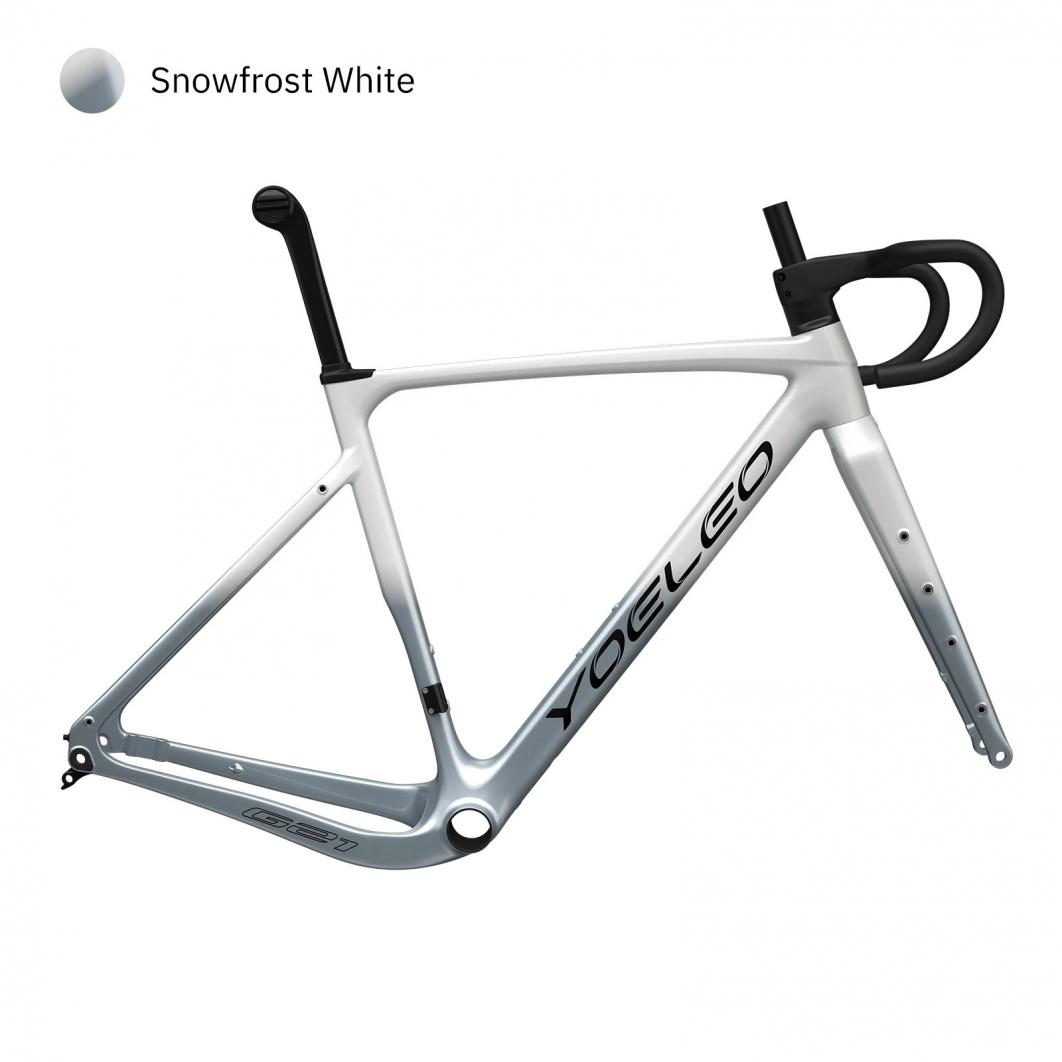

Color: Dark Olive / Chromatic Grey / Baltic Red / Blue Spectrum / Pink Opal / Snowfrost White

BB: BB386

Headtube: Straight 1-1/2”

Rear Dropout: 12*142 Thru Axle

Rear Derailleur Hanger: Replaceable

Frame Weight: 980g+/-50g (49cm)

Handlebar:

Handlebar Size:  400mm,420mm,440mm

Stem Size: 80mm/90mm/100mm/110mm

Handlebar Weight: 340+/-15g (420x90)

Fork & Seatpost:

Fork: 1-1/2" Straight Steerer, 12*100 Thru Axle

Fork Weight: 420g+/-15g

Seatpost Weight: 204+/-15g

Compatibility:

Brake Fitment: Flat Mount Disc

Cable Routing: Internal

Bottle Mounts : 4

Mudguard Compatible: Yes

Cargo Rack Compatible: Yes

Max Tire Width: 700X53mm , 650BX2.1”

Accessories:

Handlebar Spacers: 3mm: 1pc, 5mm: 1pc, 10mm:3pcs

Front Axle: 1pc, Rear Axle: 1pc

Limited Rider Weight: 110KG

Warranty: 3 Years

Geometry:

Geometry:

Sizing & Fit:

The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit.

That’s why you’ll see some overlap in our recommendations.
